Model Whirlpool 1303^0A GAS RANGE – Common Parts & Diagrams

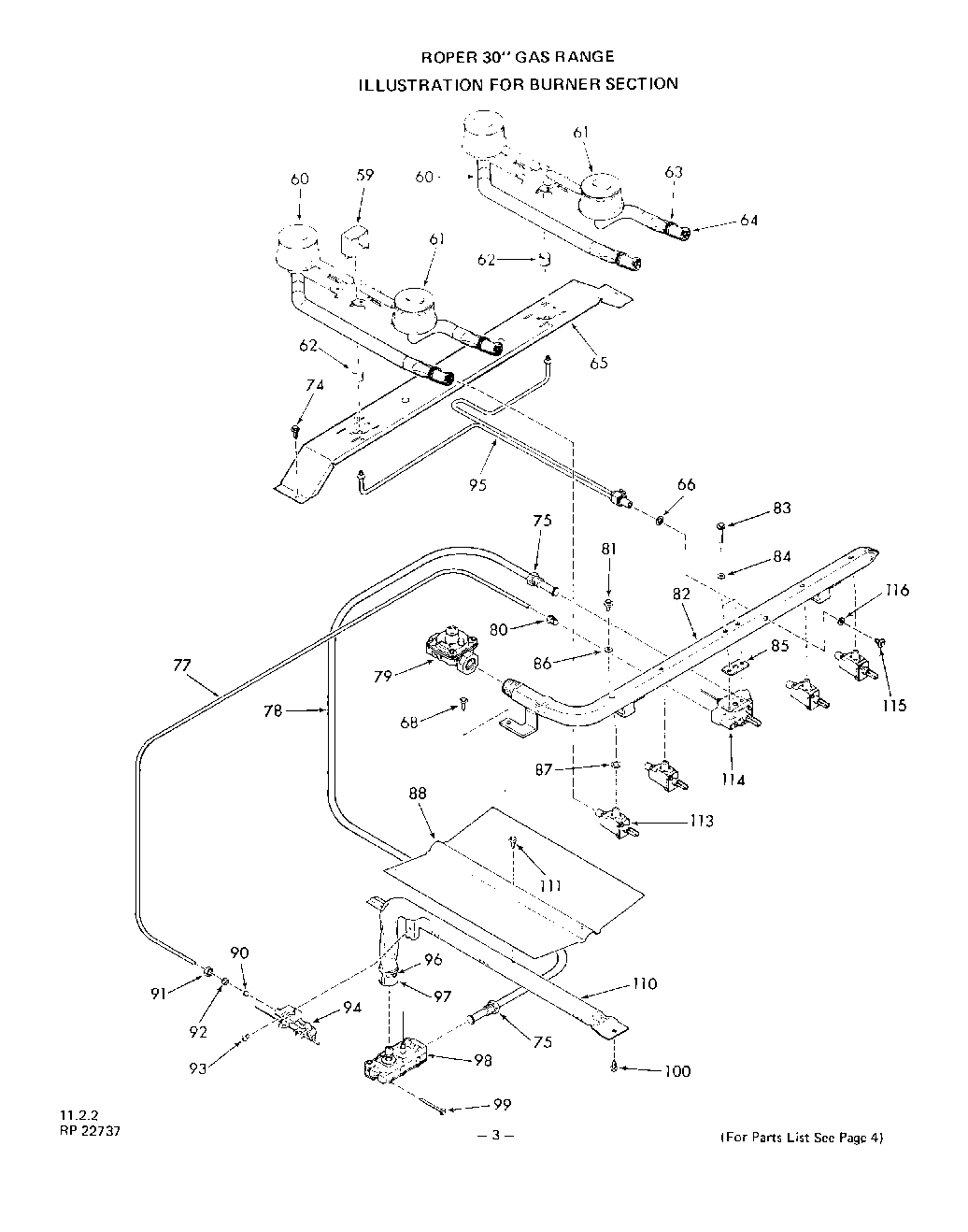

03 - BURNER

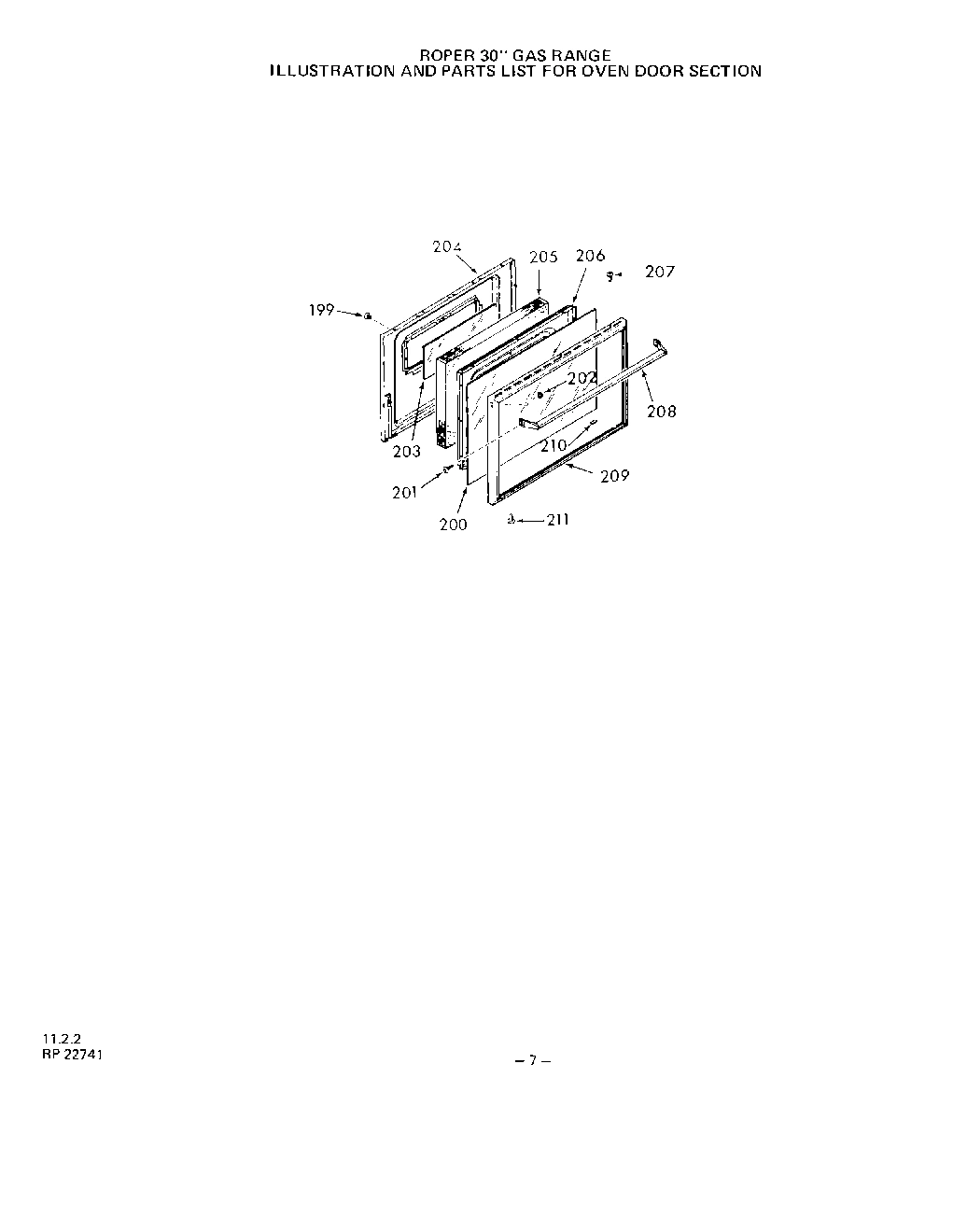

05 - OVEN DOOR

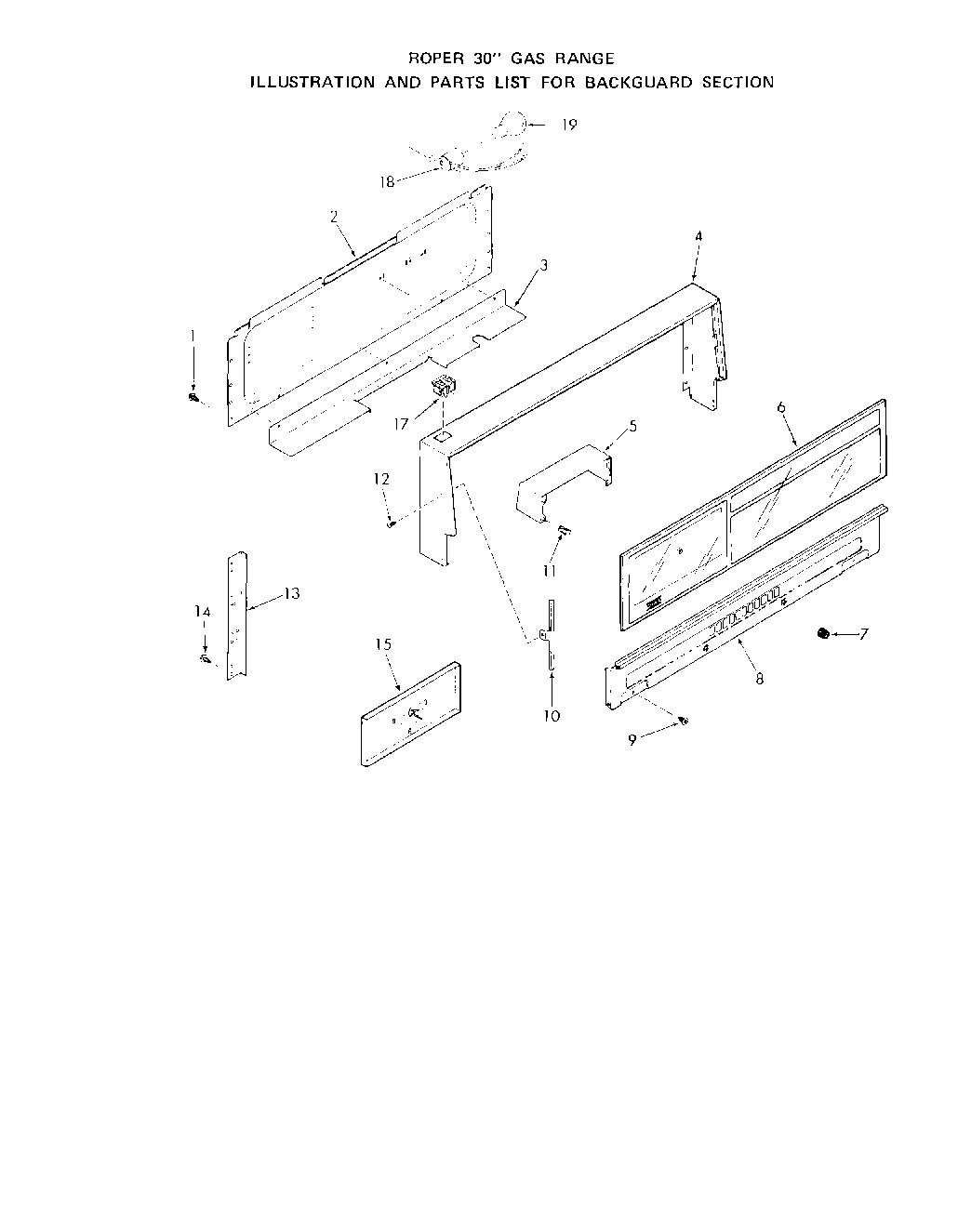

01 - BACKGUARD
02 - MAIN TOP
04 - BODY
06 - ROTISSERIE , GRIDDLE
08 - SECTION
Common parts from model Whirlpool 1303^0A GAS RANGE
2
Wire Cover-Backguard WPL 302907 Contact Us For Availability
3
Bottom-Backguard Wire Cover WPL 296569 Contact Us For Availability
4
Frame-Backguard WPL 307407 Contact Us For Availability
5
Mounting Bracket-Clock WPL 293560 Contact Us For Availability
6
Glass-Backguard WPL 324263 Contact Us For Availability
7
Knob-Clock WPL 294810 Contact Us For Availability
8
Front-Backguard Bottom WPL 307717 Contact Us For Availability
10
End Trim-Backguard Glass (Lt or Rt) WPL 299705 Contact Us For Availability
11
Tubular Clip WPL 293577 Contact Us For Availability
12
Screw 6-32x3/8`` WPL 295268 Contact Us For Availability
13
Support-Backguard (Lt. or Rt.) WPL 319361 Contact Us For Availability
15
Clock w/4 Hr.Timer WPL 322804 Contact Us For Availability
17
Switch-Oven & Top Light WPL 307410 Contact Us For Availability
18
Holder-Lamp Bulb WPL 299510 Contact Us For Availability
19
Lamp Bulb WPL 111257 Contact Us For Availability
35
Spill Bowl WPL 322888 Contact Us For Availability
36
Top Grate (4 Required) WPL 316786 Contact Us For Availability
38
Hinge (Right) WPL 323404 Contact Us For Availability
38
Hinge (Left) WPL 323405 Contact Us For Availability
40
Washer WPL 310218 Contact Us For Availability
43
Burner Box Bottom WPL 308300 Contact Us For Availability
44
Knob-Oven Thermostat WPL 322170 Contact Us For Availability
45
Knob-Gas Valve (4 Required) WPL 322502 Contact Us For Availability
46
Catch-Main Top Strike (2 Required) WPL 24667 Contact Us For Availability
47
Manifold Panel (White) WPL 314667 Contact Us For Availability
47
Manifold Panel (Coffee) WPL 314668 Contact Us For Availability
47
Manifold Panel (Avocado) WPL 314669 Contact Us For Availability
47
Manifold Panel (Golden Wheat) WPL 314670 Contact Us For Availability
47
Manifold Panel (Almond) WPL 314671 Contact Us For Availability
48
Strike-Main Top (2 Required) WPL 299784 Contact Us For Availability
49
Washer WPL 99279 Contact Us For Availability
50
Main Top (White) WPL 316813 Contact Us For Availability
50
Main Top (Almond) WPL 316814 Contact Us For Availability
50
Main Top (Golden Wheat) WPL 316815 Contact Us For Availability
50
Main Top (Avocado) WPL 316816 Contact Us For Availability
50
Main Top (Coffee) WPL 316817 Contact Us For Availability
51
Clip WPL 285945 Contact Us For Availability
52
Support-Main Top WPL 315379 Contact Us For Availability
59
Shield-Top Pilot (Lt. or Rt.) WPL 296183 Contact Us For Availability
60
Rear Top Burner-(inc`s. 63 & 64) WPL 310197 Contact Us For Availability
61
Front Top Burner (Inc`s. 63 & 64) WPL 310196 Contact Us For Availability
62
Cup-Front WPL 308292 Contact Us For Availability
63
Adjustment Screw-Air Shutter WPL 301911 Contact Us For Availability
64
Air Shutter WPL 301910 Contact Us For Availability
65
Support-Top Burner WPL 308297 Contact Us For Availability
66
Gasket WPL 323913 Contact Us For Availability
75
Inverted Nut 3/8`` WPL 113384 Contact Us For Availability
77
Tubing 3/16`` WPL 322446 Contact Us For Availability
78
Tubing 3/8`` WPL 295037 Contact Us For Availability
79
Pressure Regulator WPL 324529 Contact Us For Availability
80
Loxit Nut 3/16`` WPL 79673 Contact Us For Availability
81
Mounting Screw (Inc`s 86) WPL 311455 Contact Us For Availability
82
Manifold Pipe WPL 323468 Contact Us For Availability
83
Mounting Screw (Inc`s. 84) WPL 318478 Contact Us For Availability
84
Gasket (For 83) WPL 318658 Contact Us For Availability
85
Silicone Rubber Gasket (For 114) WPL 318567 Contact Us For Availability
86
Gasket (For 81) WPL 304241 Contact Us For Availability
87
Silicone Rubber Gasket (For 113) WPL 313563 Contact Us For Availability
88
Baffle - Oven Burner WPL 302729 Contact Us For Availability
90
Orifice Cup Only (For 94) WPL 318485 Contact Us For Availability
91
Compression Nut 3/16`` WPL 65712 Contact Us For Availability
92
Compression Ball Sleeve 3/16`` WPL 65711 Contact Us For Availability
93
Screw 10-24x1/4`` WPL 288248 Contact Us For Availability
94
Pilot Only (Inc`s 90) WPL 318486 Contact Us For Availability
95
Pilot w/Filter WPL 323912 Contact Us For Availability
96
Adjustment Screw -Air Shutter WPL 312989 Contact Us For Availability
97
Air Shutter WPL 312988 Contact Us For Availability
98
Control Valve (Inc`s. 90 & 94) WPL 324078 Contact Us For Availability
99
Screw 10-32 x 2`` WPL 323296 Contact Us For Availability
110
Oven Burner (Inc`s 88, 96 & 97) WPL 319255 Contact Us For Availability
111
Screw 10-32x7/16`` WPL 316365 Contact Us For Availability
113
Gas Valve (4 Required-Inc`s.Keys81,86,87) WPL 322347 Contact Us For Availability
114
Oven Thermsostat (Inc`s. Key 85) WPL 324757 Contact Us For Availability
115
Mounting Screw (Inc`s. 116) WPL 323914 Contact Us For Availability
116
Gasket (For 115) WPL 323915 Contact Us For Availability
130
Shield - Flue Deflector WPL 296011 Contact Us For Availability
132
Spacer-Main Top WPL 303513 Contact Us For Availability
133
Body Side (White-Right) WPL 323084 Contact Us For Availability
133
Body Side (White-Left) WPL 323085 Contact Us For Availability
133
Body Side (Coffee-Right) WPL 323086 Contact Us For Availability
133
Body Side (Coffee-Left) WPL 323087 Contact Us For Availability
133
Body Side (Avocado-Right) WPL 323088 Contact Us For Availability
133
Body Side (Avocado-Left) WPL 323089 Contact Us For Availability
133
Body Side (Golden Wheat-Right) WPL 323090 Contact Us For Availability
133
Body Side (Golden Wheat-Left) WPL 323091 Contact Us For Availability
133
Body Side (Almond- Right) WPL 323092 Contact Us For Availability
133
Body Side (Almond-Left) WPL 323093 Contact Us For Availability
134
Leg Leveler (4 Required) WPL 69065 Contact Us For Availability
135
Spring-Oven Door (Lt. or Rt.) WPL 296170 Contact Us For Availability
136
Shoulder Rivet WPL 70275 Contact Us For Availability
137
Broiler Drawer Guide (Inc`s. Keys 136 & 140) WPL 296327 Contact Us For Availability
140
Roller WPL 69006 Contact Us For Availability
141
Broiler Drawer (Inc`s. 136 & 140) WPL 303904 Contact Us For Availability
142
Hinge - Oven Door (Right) WPL 303132 Contact Us For Availability
142
Hinge-Oven Door (Left) WPL 303133 Contact Us For Availability
143
Screw 10-32 x 5/8`` WPL 112013 Contact Us For Availability
144
Broiler Pan Grid WPL 313071 Contact Us For Availability
145
Retainer-Insulation (Rt. or Lt.) WPL 314487 Contact Us For Availability
146
Grommet - Screw (8 Req.) WPL 296006 Contact Us For Availability
147
Oven Body WPL 322913 Contact Us For Availability
148
Insulation - Oven Back WPL 296140 Contact Us For Availability
149
Main Back WPL 324046 Contact Us For Availability
150
Screw 10 - 32 x 17/32`` WPL 102428 Contact Us For Availability
151
Gasket-Flue Deflector WPL 296010 Contact Us For Availability
152
Flue Deflector WPL 300917 Contact Us For Availability
153
Clip WPL 106767 Contact Us For Availability
155
Range Service Cord WPL 235822 Contact Us For Availability
156
Wire Shield WPL 318443 Contact Us For Availability
157
Disconnect WPL 232150 Contact Us For Availability
158
Insulation - Oven Top & Sides (1 Piece) WPL 296139 Contact Us For Availability
161
Thermostat Bulb Clip (2 Required) WPL 115533 Contact Us For Availability
162
WPL 296097 WPL 296097 Contact Us For Availability
163
WPL 303963 WPL 303963 Contact Us For Availability
165
WPL 290171 WPL 290171 Contact Us For Availability
166
WPL 67017 WPL 67017 Contact Us For Availability
167
WPL 305064 WPL 305064 Contact Us For Availability
168
WPL 296124 WPL 296124 Contact Us For Availability
168
WPL 296125 WPL 296125 Contact Us For Availability
170
WPL 292240 WPL 292240 Contact Us For Availability
171
WPL 302343 WPL 302343 Contact Us For Availability
172
WPL 296131 WPL 296131 Contact Us For Availability
172
WPL 308346 WPL 308346 Contact Us For Availability
172
WPL 308975 WPL 308975 Contact Us For Availability
172
WPL 308976 WPL 308976 Contact Us For Availability
172
WPL 308977 WPL 308977 Contact Us For Availability
173
WPL 296137 WPL 296137 Contact Us For Availability
175
WPL 296332 WPL 296332 Contact Us For Availability
176
WPL 21067 WPL 21067 Contact Us For Availability
177
WPL 239113 WPL 239113 Contact Us For Availability
178
WPL 314573 WPL 314573 Contact Us For Availability
179
WPL 314574 WPL 314574 Contact Us For Availability
180
WPL 316994 WPL 316994 Contact Us For Availability
182
WPL 87883 WPL 87883 Contact Us For Availability
183
WPL 296069 WPL 296069 Contact Us For Availability
184
WPL 305408 WPL 305408 Contact Us For Availability
185
WPL 305409 WPL 305409 Contact Us For Availability
200
Outer Glass-Oven Door WPL 318315 Contact Us For Availability
201
Screw 8-32 x 1/2`` WPL 319447 Contact Us For Availability
202
Keps Nut 8-32 WPL 239764 Contact Us For Availability
203
Inner Glass-Oven Door WPL 296214 Contact Us For Availability
204
Lining-Oven Door WPL 296205 Contact Us For Availability
205
Insulation WPL 303556 Contact Us For Availability
206
Retainer - Oven Door Insulation WPL 296471 Contact Us For Availability
207
Screw 6Ax3/8`` WPL 120855 Contact Us For Availability
208
Handle-Oven Door WPL 303342 Contact Us For Availability
209
Frame-Oven Door WPL 296473 Contact Us For Availability
210
Cushion-Door Glass (3 Required) WPL 112370 Contact Us For Availability
211
Screw 10-32 x 1/2`` WPL 102376 Contact Us For Availability
× ![]()
